iBasso DC07 Pro Balanced Dongle DAC and Amp (Black)

Product description

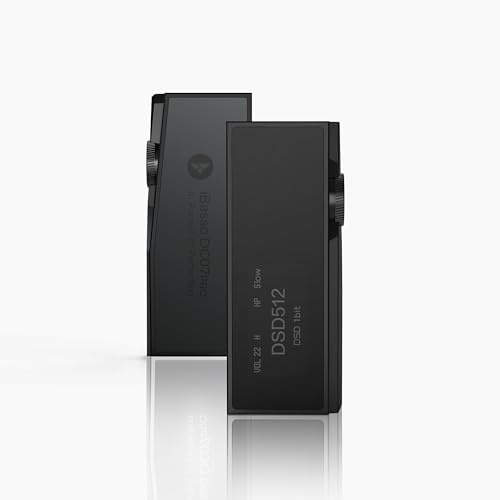

• An Attractive DAP-like Design - The shell of the DC07Pro is CNC machined Aluminium, the top is the OLED screen, and the back cover is tempered glass. Additionally, a knob has been strategically positioned on the side. The style and precision exude a sense of luxury and sophistication, reminiscent of high-end DAPs.
• FPGA DC07Pro s System Controller - The DC07Pro utilizes iBasso's in-house developed FPGA technology, which integrates the audio algorithms and constructs the system controller of the dongle. As the core of the DC07Pro, the FPGA plays the role of signal regeneration and clock synchronization. The FPGA also generates ultra-low jitter clocks for the DAC and USB receiver, effectively reducing the clock jitter caused by the USB bus.
• (x4) CS43131, Flagship DAC Array - The DC07Pro utilizes x4 pieces of Cirrus Logic flagship CS43131 DAC chips in combination with iBasso's exclusive FPGA technology. The results are a comprehensive leap in audio measurements. The AP measured THD+N is a remarkable -120.2dB. Utilizing the exclusive FPGA, the DC07Pro supports DSD512 and PCM 32bit 768kHz thanks to the CS43131 4 DAC array.
• Impressive Power Efficiency - DC07Pro utilizes a synchronous DC-DC converter with a power conversion efficiency of up to 94%. The power consumption of the DC07Pro is as low as 80mA, 40% lower than that of the DC04Pro, and the output power is increased by 82%. The DAC power supply adopts an ultra-low noise LDO dedicated for analogue circuits, with a PSRR (power supply rejection ratio) of up to 100dB to ensure the purity of the power supply.
• OLED + Convenient & Intuitive Operation - The DC07Pro has a 0.96" OLED screen and is equipped with an ALPS encoder. One can browse and complete all settings using the multi-function knob. Simply rotate and press the multi-function knob to complete volume adjustments, digital filter settings, etc. The DC07Pro also supports the iBasso UAC Android APK app, which allows you to control all settings with your Android device.
• 32bit 768kHz SPDIF Output - The DC07Pro supports SPDIF output up to 32bit 768kHz. With the DC07Pro, your smartphone also can now be a top-tier SPDIF transport device.
• iPhone usage supported - iPhone has a current output limit for connected dongle devices. When the power consumption of the external device is high, it can easily trigger the iPhone power protection, resulting in a forced shutdown. The DC07PRO power consumption is as low as 80mA, so there is no need to worry. The multi-function knob and OLED screen work together to quickly set various gains and filters. No app is required on the iOS side, and all the functions of the DC07PRO can be used and enjoyed.
